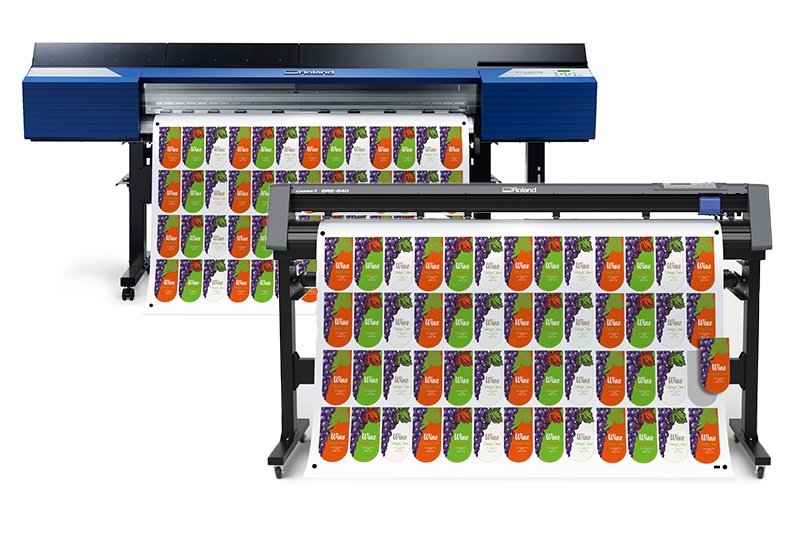

CAMM-1 GR2-640/540

Άμεση παραλαβή



Κοπτικά Βινυλίου Μεγάλου Μεγέθους

Με υψηλή Αξιοπιστία, Ποιότητα και Ακρίβεια, τα κοπτικά CAMM-1 GR2 προσφέρουν απρόσκοπτη λειτουργία στη ροή εργασίας εκτύπωσης και κοπής, παρέχοντας γρήγορα και άριστα αποτελέσματα από την πρώτη κιόλας μέρα.





                                                 Επικοινωνήστε για τιμή.

                                             Εκδήλωση ενδιαφέροντος.



Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

Add to compare
Add to wishlist
13 People watching this product now!
  • Pick up from the Woodmart Store

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Payment Methods:

Description

GR2-640

Drive system Digital control servo motor
Cutting mechanism Media-moving method
Acceptable material size (*1)(*2)
Width: 50 mm to 1,782 mm (1.97 in. to 70.1 in.)
Thickness: Thickness including backing paper is 0.8 mm (31.4 mil.) or less
Roll weight: 24 kg (52.9 lb.)
Maximum cutting area (width × length) 1,627 mm × 50,000 mm (64 in. × 1,968 in.)
Usable tools CAMM-1 series blade (including blades for flatbed use)
Cutting speed 30 to 1,530 mm/s (1.19 to 60 in./s)
Blade force 5 – 600 gf
Mechanical resolution 0.006 mm/step (0.236 mil./step)
Software resolution 0.025 mm/step (0.98 mil./step)
Distance accuracy (*3) Error of less than ±0.1% of distance traveled or 0.254 mm (10 mil.), whichever is greater
Repeatability (*3)(*4)(*5) 0.1 mm (3.94 mil.) or less
Connectivity Ethernet (automatic switching between 10BASE-T and 100BASE-TX)
USB 2.0 (FULL SPEED compliant)
RS-232C
Replot memory 32 MB
Command system HP-GL, HP-GL/2 compliant
Power requirements AC 100 to 240 V ± 10%, 50/60 Hz
Power consumption Approx. 110 W
Acoustic noise level
During operation 56 dB (A) or less
During standby 40 dB (A) or less
Dimensions (Width x Depth x Height) 1,982 mm × 756 mm × 1,127 mm (78.1 in. × 30 in. × 44.4 in.)
Weight 69 kg (153 lb.)
Packaging dimensions 2,200 mm × 395 mm × 880 mm (87 in. × 15.6 in. × 34.7 in.)
Packaging weight 97 kg (214 lb.)
Environment Temperature: 15 to 30 °C (59 to 86 °F), humidity: 25 to 75 %RH (no condensation)
Accessories USB cable, cutting pad, safe blade, dedicated stand, tweezers, user’s manual, etc.

*1: Depending upon the type, material that is 500 mm (19.6 in.) or longer may shift during cutting.
*2: You may also be unable to cut some types of material.
*3: According to material and cutting conditions as specified by Roland DG Corporation.
*4: Excluding expansion/contraction of the material.
*5: Range for assured repetition accuracy:

  • For media with a width exceeding 610 mm (24 in.): Length: 4,000 mm (157 in.)
  • For media with a width of 610 mm (24 in.) or less: Length: 8,000 mm (314 in)



GR2-540

Drive system Digital control servo motor
Cutting mechanism Media-moving method
Acceptable material size (*1)(*2)
Width: 50 mm to 1,594 mm (1.97 in. to 62.7 in.)
Thickness: Thickness including backing paper is 0.8 mm (31.4 mil.) or less
Roll weight: 20 kg (44.1 lb.)
Maximum cutting area (width × length) 1,372 mm × 50,000 mm (54 in. × 1,968 in.)
Usable tools CAMM-1 series blade (including blades for flatbed use)
Cutting speed 30 to 1,530 mm/s (1.19 to 60 in./s)
Blade force 5 – 600 gf
Mechanical resolution 0.006 mm/step (0.236 mil./step)
Software resolution 0.025 mm/step (0.98 mil./step)
Distance accuracy (*3) Error of less than ±0.1% of distance traveled or 0.254 mm (10 mil.), whichever is greater
Repeatability (*3)(*4)(*5) 0.1 mm (3.94 mil.) or less
Connectivity Ethernet (automatic switching between 10BASE-T and 100BASE-TX)
USB 2.0 (FULL SPEED compliant)
RS-232C
Replot memory 32 MB
Command system HP-GL, HP-GL/2 compliant
Power requirements AC 100 to 240 V ± 10%, 50/60 Hz
Power consumption Approx. 110 W
Acoustic noise level
During operation 56 dB (A) or less
During standby 40 dB (A) or less
Dimensions (Width x Depth x Height) 1,711 mm × 651 mm × 1,111 mm (68 in. × 25.7 in. × 44 in.)
Weight 60 kg (133 lb.)
Packaging dimensions 2,040 mm × 395 mm × 850 mm (81 in × 15.6 in × 33.5 in.)
Packaging weight 85 kg (188 lb.)
Environment Temperature: 15 to 30 °C (59 to 86 °F), humidity: 25 to 75 %RH (no condensation)
Accessories USB cable, cutting pad, safe blade, dedicated stand, tweezers, user’s manual, etc.
